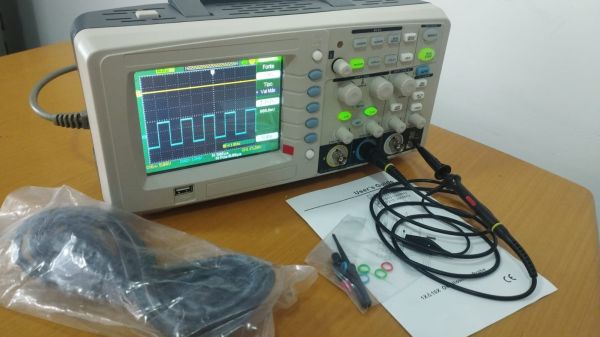

Osciloscópio de armazenamento digital Siglent SDS1062CM 60MHz 500MSa/s

SIGLENT TECHNOLOGIES

CHARACTERISTIC:
● The highest Single real-time sampling rate can be up
to; Equivalent sampling rate is up to 500GSa/s.
● Memory Depth: 2Mpts
● Trigger types: Edge, Pulse Width, Video, Slope, Alternative
● Unique Digital Filter function and Waveform recorder function
● Support Pass/Fail function.
●Thirty two parameters Auto measure function.
● Save/recall types: Setups, Waveforms, CSV file, Picture.
● Support Multilingual On-line help system
● Waveform Intensity and Grid Brightness can be adjusted.
● Support twelve types Language
● Standard Configuration Port:
USB Host: Support USB flash driver save/recall function and update
firmware;
USB Device: Support PictBridge compatible printer and support PC
remote control;
RS232;
Pass/Fail Output

SIGLENT TECHNOLOGIES
Specifications
All specification applies to 10X probe and All the SDS1000CM Series Digital
Storage Oscilloscopes.
To verify that the oscilloscope meets specifications, the oscilloscope must first
meet the following conditions:
● The oscilloscope must have been operating continuously for thirty minutes
within the specified operating temperature.
● You must perform the Do Self Cal operation, accessible through the Utility
menu, if the operating temperature changes by more than 5° C.
● The oscilloscope must be within the factory calibration interval
All specifications are guaranteed unless noted “typical.”
Inputs
Input Coupling AC, DC, GND
Input Impedance 1MΩ±2% || 16Pf±3Pf
Maximum Input
voltage
400V （DC+AC PK-PK，1MΩ input impedance，
X10），CAT I
Probe Attenuator 1X,10X
Probe Attenuator
Factors Set 1X,5X,10X,50X,100X, 500X,1000X
Vertical System
Vertical Sensitivity 2mV/div -10V/div(1-2-5 order)
Channel Voltage
Offset Range
2mV –200mV: ±1.6V 206mV - 10V: ±40V
Vertical Resolution 8 bit
Channels 2
Analog
Bandwidth
150MHz(SDS1152CM)
100MHz(SDS1102CM)
60MHz(SDS1062CM）
Single-shot
Bandwidth
150MHz(SDS1152CM)
100MHz(SDS1102CM)
60MHz(SDS1062CM）
BW Flatness at BNC DC -10% of rated BW: +/- 1dB

SIGLENT TECHNOLOGIES
input 10% - 50% of rated BW: +/- 2dB
50% - 100% of rated BW: + 2dB/-3dB
Lower frequency limit
(AC -3dB) ≤10Hz(at input BNC)
Noise: Pk-Pk for 3K
record
≤0.6 Div for average of 10 Pk-Pk readings, Fixed
gain settings
≤0.7 Div for average of 10 Pk-Pk readings,
Variable gain settings
SFDR including
harmonics
(measured with FFT)
>=35dB
DC Gain Accuracy
＜ ± 3.0%: 5mv/div to 10V/div in Fixed Gain
Ranges
＜±4.0%: 2mv/div Variable Gain Ranges
DC Measurement
Accuracy:
All Gain settings ≤
100mv/div
± [3%* （ |reading|+|offset| ） +1% *of |offset|
+0.2div+2mv]
DC Measurement
Accuracy:
All Gain settings ＞
100mv/div
± [3%* （ |reading|+|offset| ） +1%* of |offset|
+0.2div+100mv]
Rise time
<2.3ns ( SDS1152CM)
<3.5ns(SDS1102CM)
<5.8ns (SDS1062CM）
Overshoot, Typical
(using 500ps pulse)
<10% with probe or BNC input w/ 50 Ohm feed
thru
Math operation +, -, *, /, FFT
FFT
Window mode: Hanning, Hamming, Blackman,
Rectangular
Sampling points: 1024
Bandwidth limited 20MHz ± 40% (Note: BW limited below
20MHz when using probe in x1)
Horizontal System
Real Time
Sampling Rate
Single Channel:1GSa/s,
Double Channel: 500MSa/s( When timebase
faster than 50ns/div)
Equivalent
Sampling Rate 50GSa/s
Measure Display
Modes MAIN, WINDOW, WINDOW ZOOM, ROLL, X-Y
Timebase Accuracy ±100ppm measured over 1ms interval
